Interface: 3 10/100 RJ45 LAN Ports
10/100/1000 1RJ45 LAN/WAN Port
1RJ11 Port
1USB 2.0 Port
Button : WPS Button
Wireless On/Off Button
Power On/Off Button
Reset Button
Power Supply : 12V/1.5A
IEEE Standards : IEEE 802.3
IEEE 802.3u
802.3ab
(VDSL2 Standards : ITU G.993.2, Up to 17a prole (POTS
(ITU-T G.993.5 (G.vector
(ITU-T G.998.4 (G.INP
ADSL Standards : Full-rate ANSI T1.413 Issue 2
(ITU-T G.992.1(G.DMT)
(ITU-T G.992.2(G.Lite
(ITU-T G.994.1 (G.hs
ITU-T G.995.1
(ADSL2 Standards : ITU-T G.992.3 (G.DMT.bis
(ITU-T G.992.4 (G.lite.bis
ADSL2+ Standards : ITU-T G.992.5
Dimensions ( W x D x H) : 243.5×167.5×32.7mm
Antenna Type : 3 fixed external antennas
Frequency response : 2.4GHz: 2.400~2.483 GHz
5GHz: 5.150~5.250 GHz
Wireless Standards : IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz
Wireless Speeds : 867Mbps at 5GHz
300Mbps at 2.4GHz
(Transmit Power : 2.4GHz <20dBm(EIRP
(5GHz <23dBm(EIRP
Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM
Wireless Statistics
Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering
Wireless Schedule : Support 2.4GHz and 5GHz Wireless Schedule
Quality of Service : ATM QoS
Security : NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes : VDSL/ADSL Modem Router, Wireless Router,3G/4G Router
,Management : Web Based Conguration(HTTP), Remote management
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
Upgrade, Diagnostic Tools
DHCP : Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding : Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS : DynDns, NO-IP
VPN Pass-Through : PPTP, L2TP, IPSec Passthrough
Protocols : Supports IPv4 and IPv6
(ATM/PPP Protocols : ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
(Advanced Functions : Parental Control, Network Address Translation(NAT
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
USB Sharing : Support Samba(Storage)/FTP Server/Media Server/Printer
Server, 3G/4G Modem
Guest Network : 2.4GHz guest network, 5GHz guest network
IPSec VPN : Supports up to 10 IPSec VPN tunnels
Beamforming : 5GHz
Certification : CE, RoHS, RCM
: Package Contents

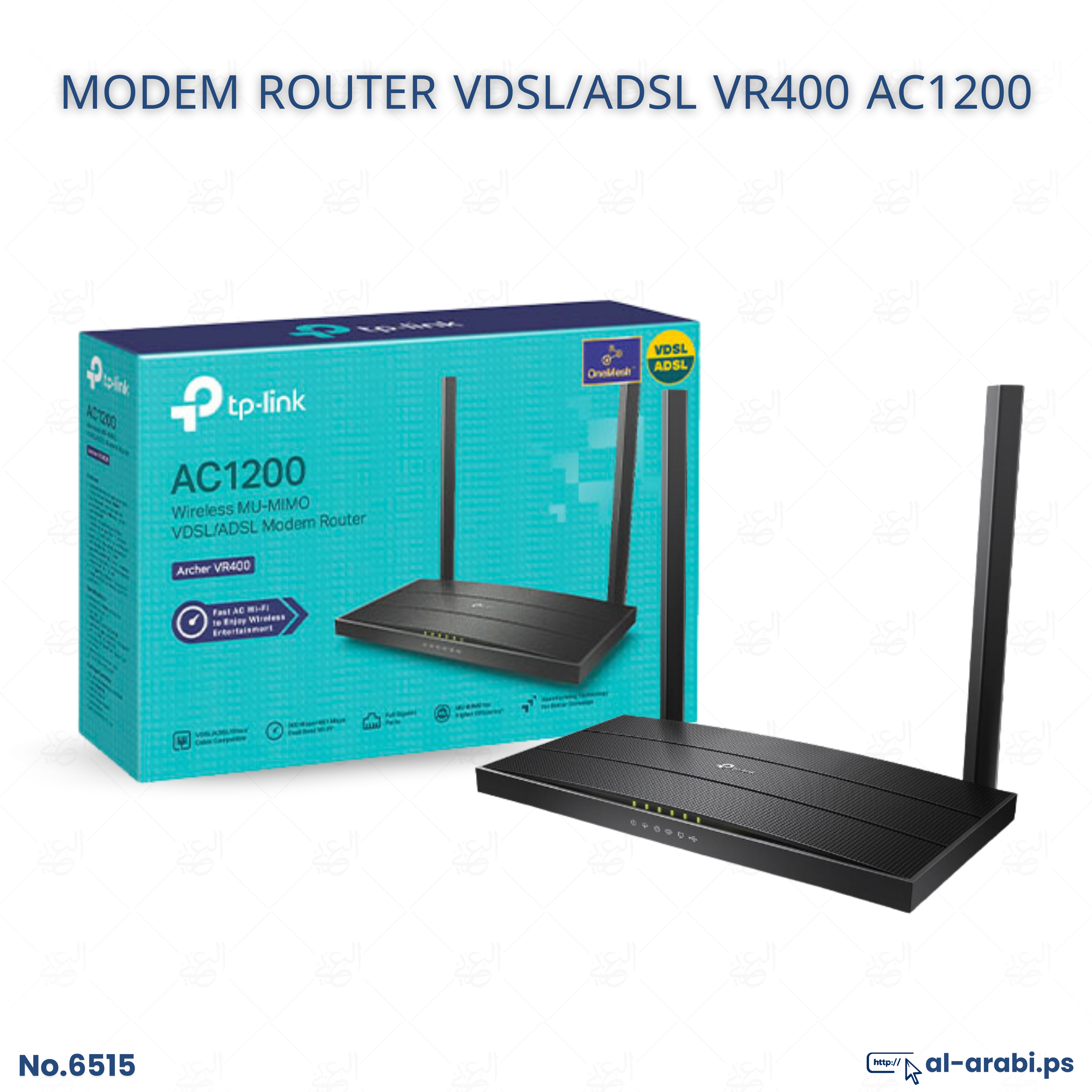

· AC1200 Wireless VDSL/ADSL Modem Router Archer VR400
· External Splitter
· RJ11 DSL Cable
· RJ45 Ethernet Cable
· Power Adapter
· Quick Installation Guide
System Requirements : · Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
· Subscription with an Internet Service Provider (for Internet access)·(℉Environment : Operating Temperature: 0℃~40℃ (32℉ ~104
·(℉Storage Temperature: -40℃~70℃ (-40℉ ~158
· Operating Humidity: 10%~90% non-condensing
· Storage Humidity: 5%~90% non-condensing
