Product Description:
300Mbps Wireless N Speed

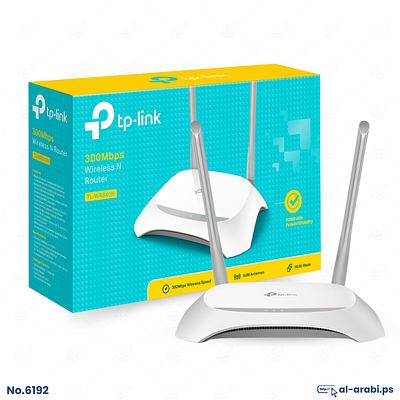

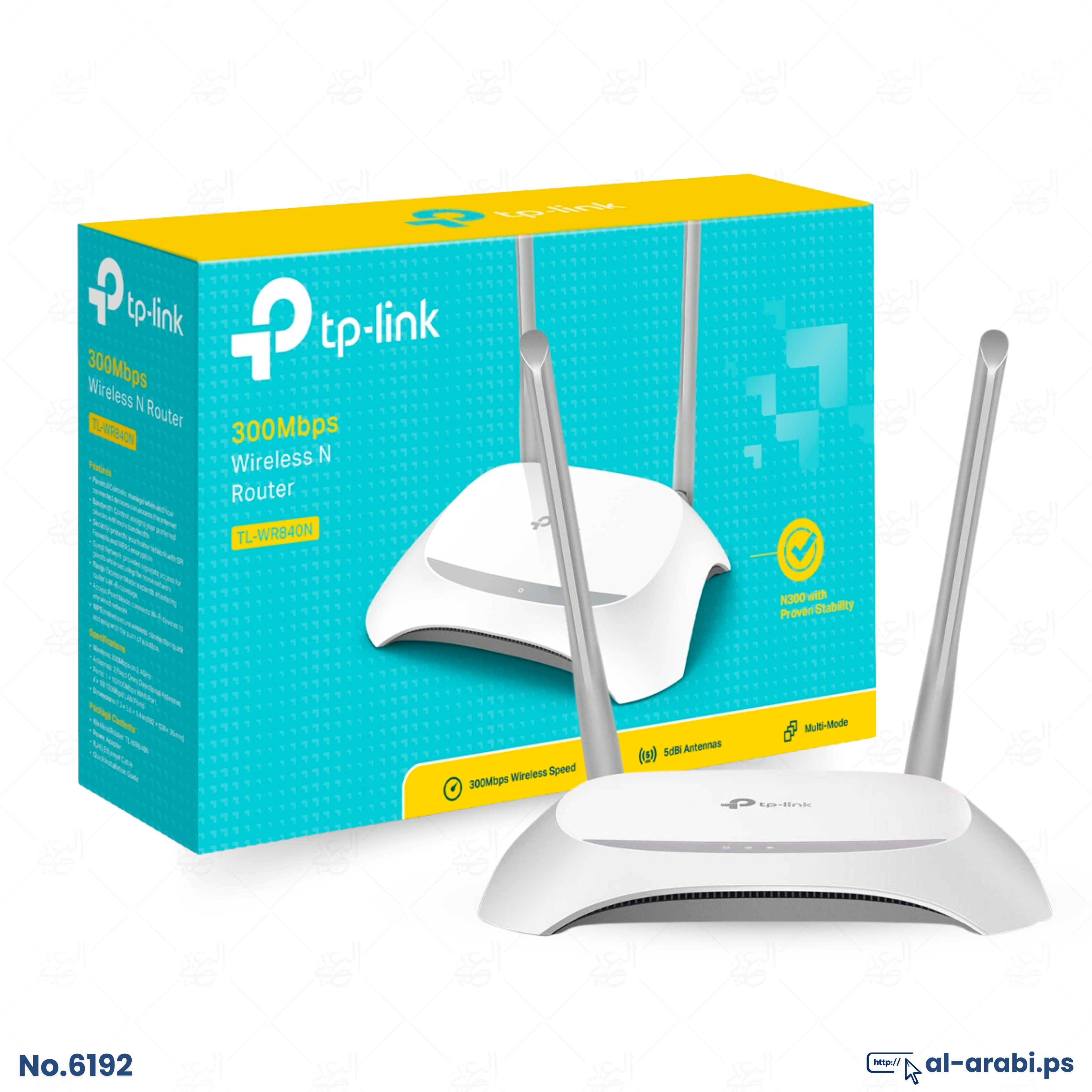

TL-WR840N
· 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
· Supports Access Point mode to create a new Wi-Fi access point
· Supports Range Extender mode to boost the existing wireless coverage in your room
· Parental Controls manage when and how connected devices can access the internet
· IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
· compatible with IPv6 (Internet Protocol version 6)
· Guest Network provides separate access for guests while securing the home network
Standards : Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds : N300
(2.4 GHz 300 Mbps (802.11n
WiFi Range : 2 Bedroom Houses
2x Fixed Antennas
WiFi Capacity : Legacy
Working Modes : Router Mode
Access Point Mode
Range Extender Mode
WISP Mode
Processor : Single-Core CPU
Ethernet Ports : 1× 10/100 Mbps WAN Port
4x 10/100 Mbps LAN Ports
Buttons : Reset Button
Power : 9 V ⎓ 0.6 A
WiFi Encryption : WEP
WPA
WPA2
(WPA/WPA2-Enterprise (802.1x
Network Security : SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network : 1× 2.4 GHz Guest Network
VPN Server: OpenVPN
PPTP
Protocols : IPv4
IPv6
Parental Controls : URL Filtering
Time Controls
WAN Types : Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service : QoS by Device
NAT Forwarding : Port Forwarding
Port Triggering
DMZ
UPnP
IPTV : IGMP Proxy
IGMP Snooping
DHCP : Address Reservation
DHCP Client List
Server
DDNS : NO-IP
Comex
DynDNS
Management : Tether App
Webpage
Dimensions (W×D×H) : 7.2 × 5.0 × 1.4 in
(182 × 128 × 35 mm)
Package Contents : Wi-Fi Router TL-WR840N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
+,System Requirements : Internet Explorer 11+, Firefox 12.0
Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
(Cable or DSL Modem (if needed
(Subscription with an internet service provider (for internet access
Certifications : FCC, CE, RoHS
(℉Environment : Operating Temperature: 0℃~40℃ (32℉ ~104
(℉Storage Temperature: -40℃~70℃ (-40℉ ~158
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
WiFi Transmission Power : CE
(20dBm(2.4GHz>
FCC
30dBm<
WiFi Reception Sensitivity : 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
